1200-TVH-FAG

1200-TVH-FAG

You need to be logged in to see prices.

1200-TVH-FAG

  • ID: 10 mm
  • OD: 30 mm
  • Width: 9 mm

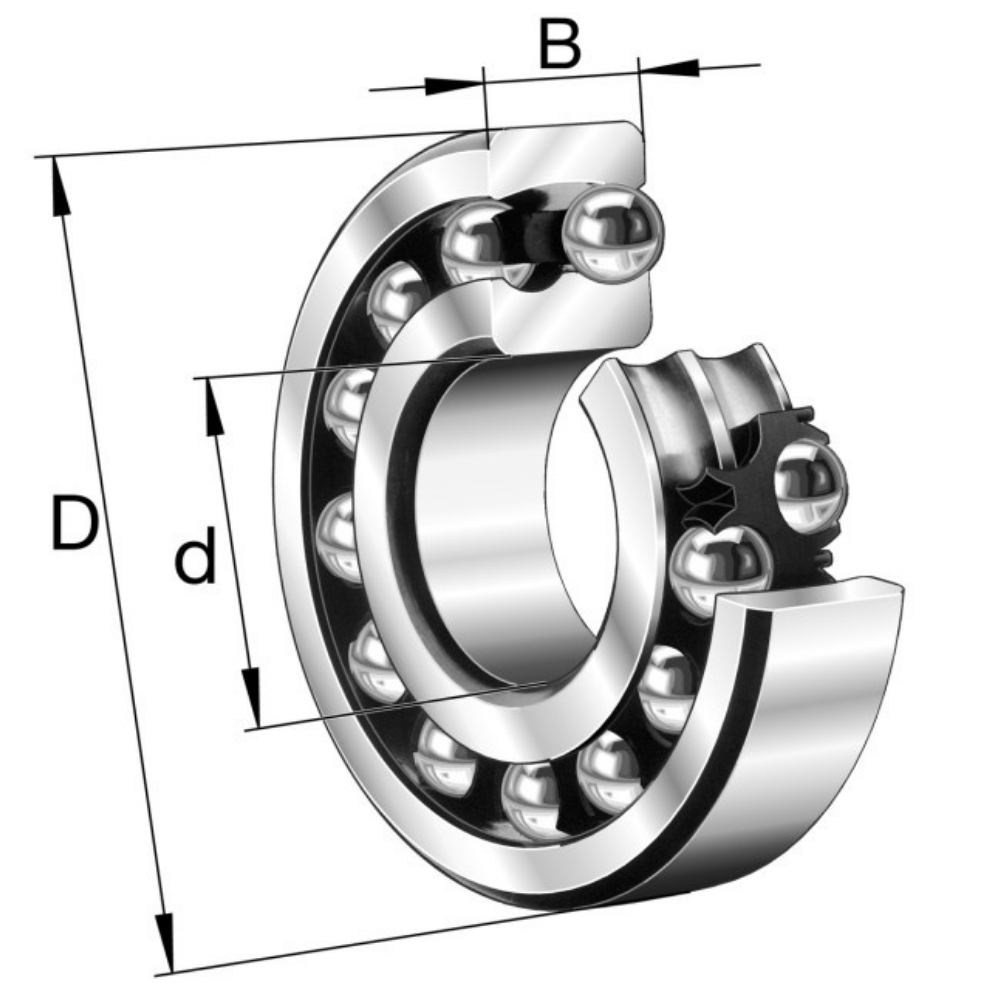

1200-TVH-FAG is a FAG self-aligning ball bearing with boundary dimensions 10x30x9 mm (ID x OD x Width) per ISO 15. Design: double-row balls with common spherical raceway; compensates angular misalignment; low friction and quiet running. Suffix details: Glass-fibre reinforced polyamide cage. Standards & quality: manufactured to ISO 492 tolerances; supplied by AMC via authorized FAG channels.

No detailed specifications are available for this product.

There are no downloads for this product.
